Mounting Kit for Bigsby B7 - Arched Top Guitars

* Note: Vibramate V7 is designed for the Bigsby "Original" B7 Vibrato ONLY and will not work with other variations such as the "Licensed" B70 Model or the Import B700 Model. Make sure you have the correct Bigsby Vibrato for proper installation of the Vibramate Kit!

Vibramate V7-335 Installs in Minutes with No Drilling!
For Arch Top Guitars with Stop Tailpiece and Tune-A-Matic Bridge.
*Note: There are 2 Sizes of the V7-335 Mounting Kit available depending on your specific model guitar - Please review our online drawing before ordering.

Vibramate

Vibramate

Now you can install a Bigsby B7 Vibrato on your arch top guitar without drilling any holes! The Vibramate V7-335 Model Mounting Kit is designed for a Bigsby B7 Original Vibrato and will fit most Standard 335 Sized Arch Top guitars with Stop Tailpiece and Tune-O-Matic Bridge.

Choose from 2 sizes available depending on your specific guitar; 8.0" E-Series or 8.5" G-Series. Please refer to our online diagram.

Vibramate The kit installs in minutes with the included hardware and eliminates the need for drilling holes in your instrument.

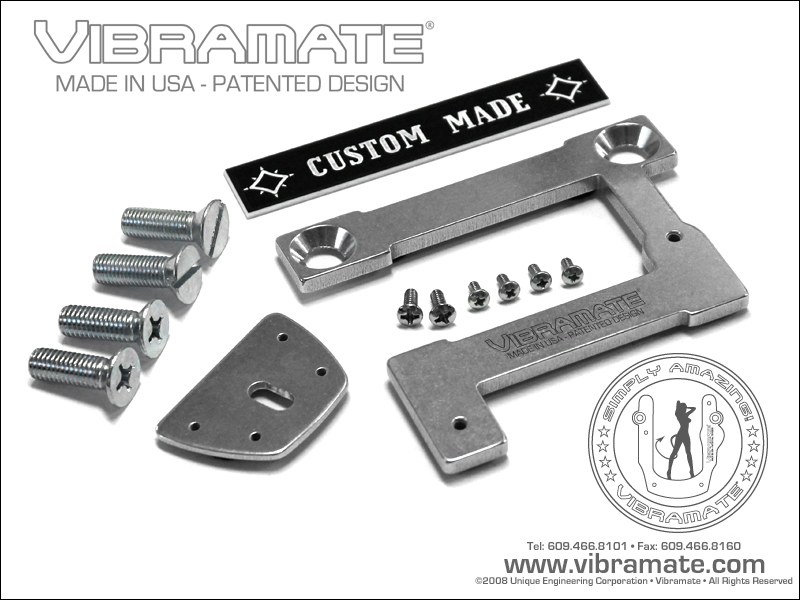

Vibramate V7-335 Kit includes the Vibramate V7 mounting plate with felt-pads on the bottom for a soft touch to the top of your guitar.

The Vibramate V7-335 kit includes our felt-padded Tailpiece Plate for mounting the Hinge-Plate of the Bigsby B7 to the Strap Pin hole at the lower end of your guitar.

The Vibramate V7-335 kit also includes our "CUSTOM MADE" nameplate cover with adhesive backing that completes the kits classic installation appearance.

Vibramate automatically positions the Bigsby Vibrato in the proper orientation and makes a very clean finished appearance with great performance.

The Vibramate Quick Mount Kit includes both English and Metric threaded mounting hardware for either US or Import model guitars.

* Order Vibramate V7-335 Mounting Kit Now!

Vibramate Vibramate

Vibramate

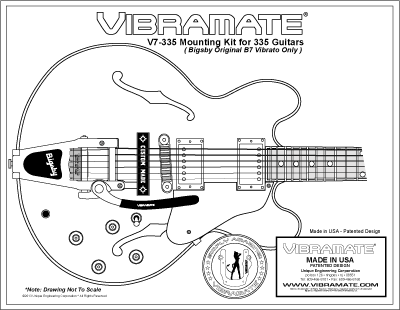

Installation Chart V7-335

Choose from 2 sizes available depending on your specific guitar; 8.0" E-Series or 8.5" G-Series. Please refer to our online diagram to check mounting dimension requirements for your specific guitar before ordering. Be sure to follow the mounting instructions to prevent damage to your instrument.

* V7-335 Arch Top Photos #1
* V7-335 Arch Top Photos #2

* Download Installation Instructions

* Order Now!
